Part Number: RR02
|

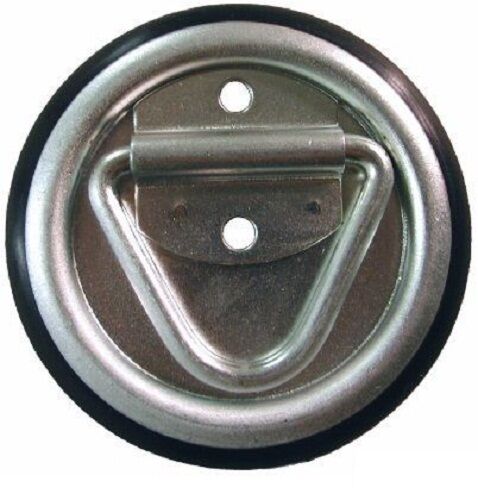

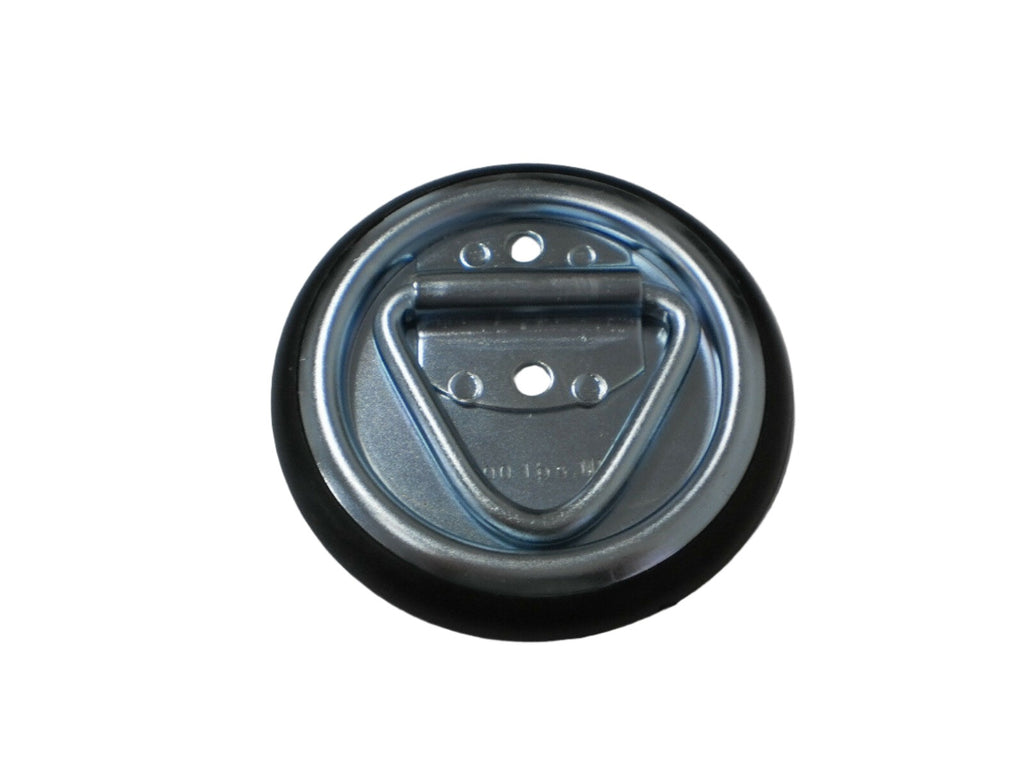

These are the same D rings I install in the trailers I sell, when I set them up for Holding down Motorcycles, Lawn Mowers, ATV's, ETC. Not used for Cars or other heavy equipment 1/4" thick ring bent in a triangle shape 2" Plastic trim ring 4"O.D. Actual steel base measures 3.5" O.D. CAN BE RECESSED IN A 3" HOLE 1/4" DEEP I usually install right on a frame cross member for a strong mount. |
Dimensions

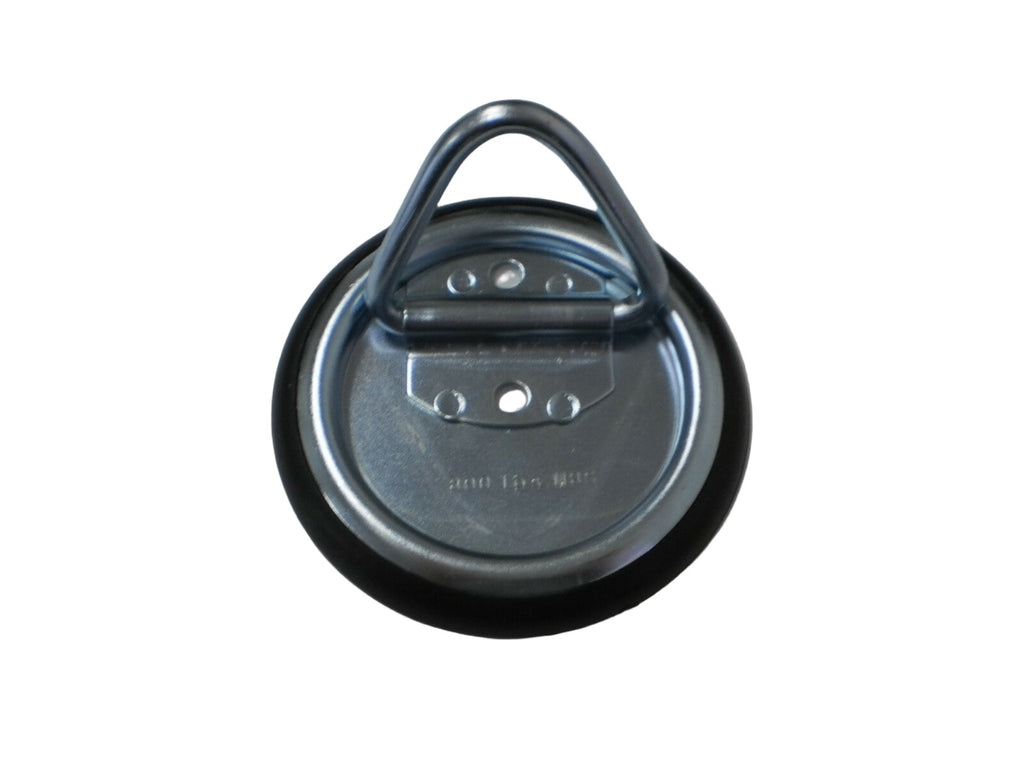

- 1/4" Thick Ring Bent into a triangle shape, 2" tall

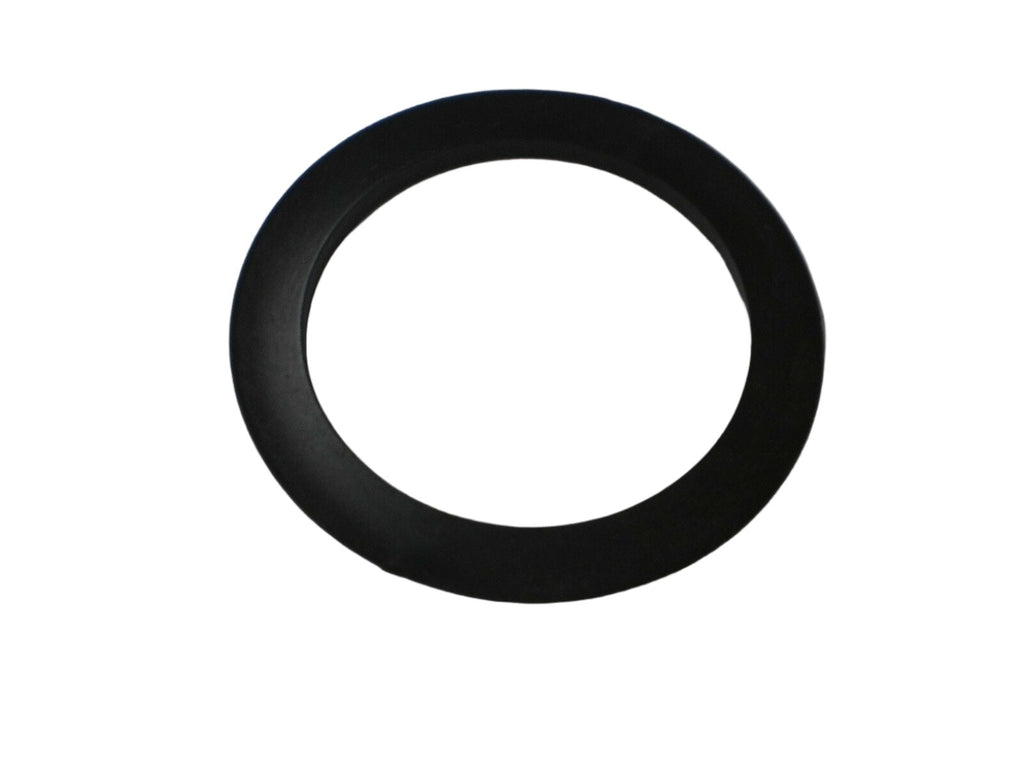

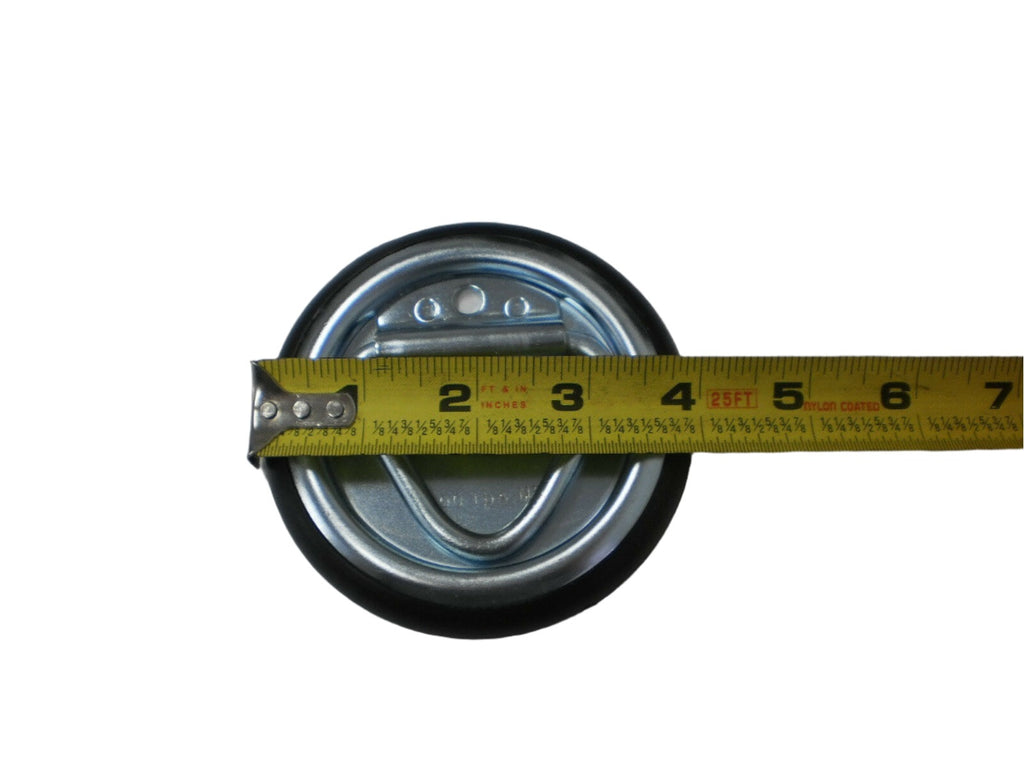

- 4" OD Plastic trim ring

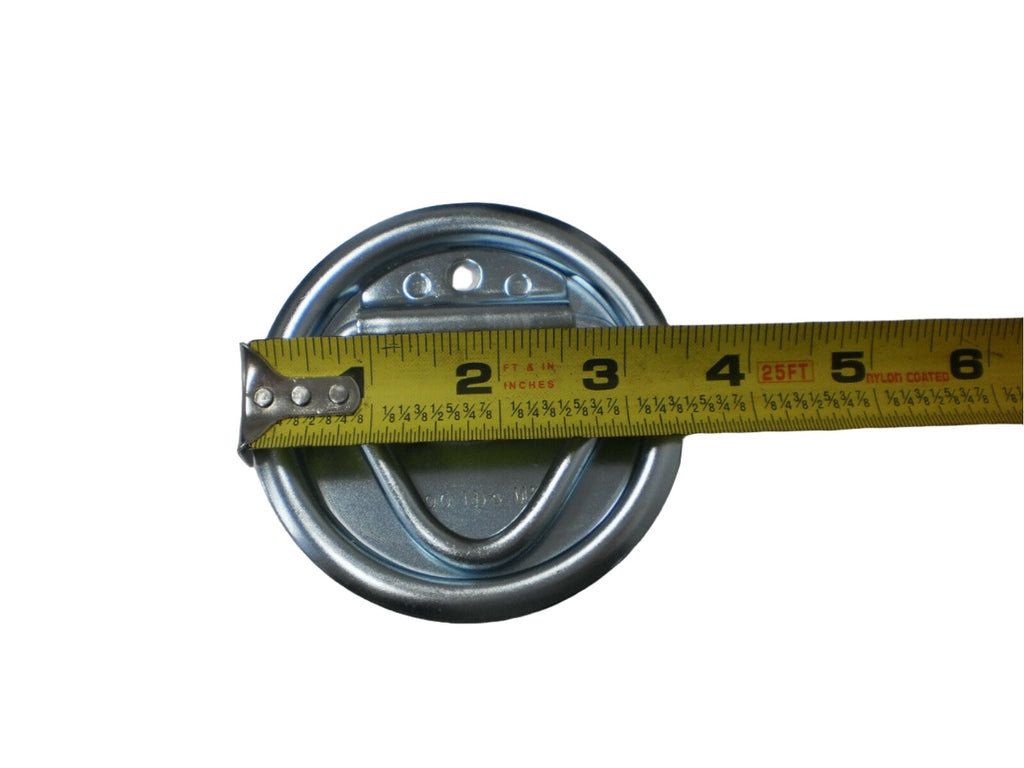

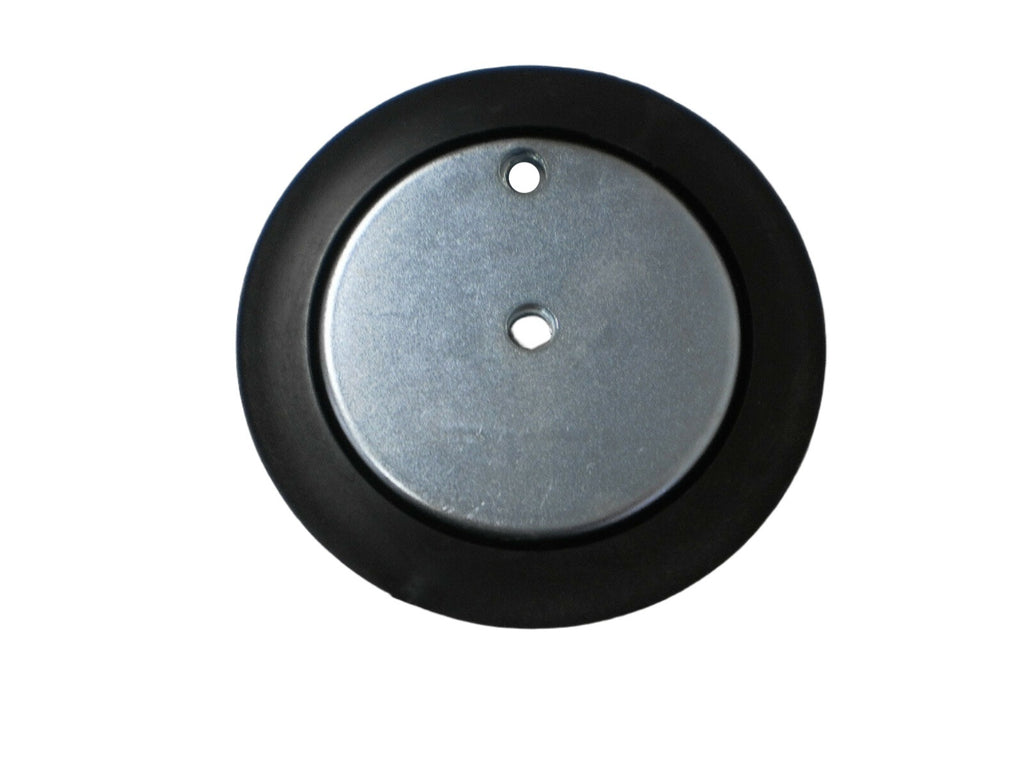

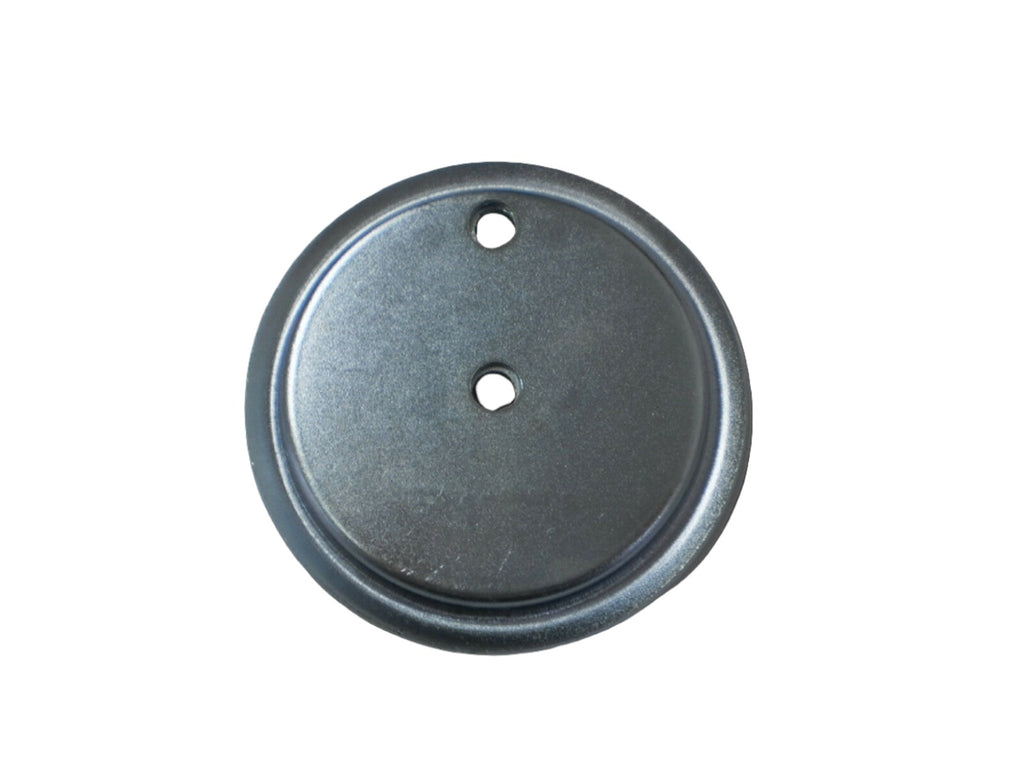

- Steel D ring base 3.5" OD

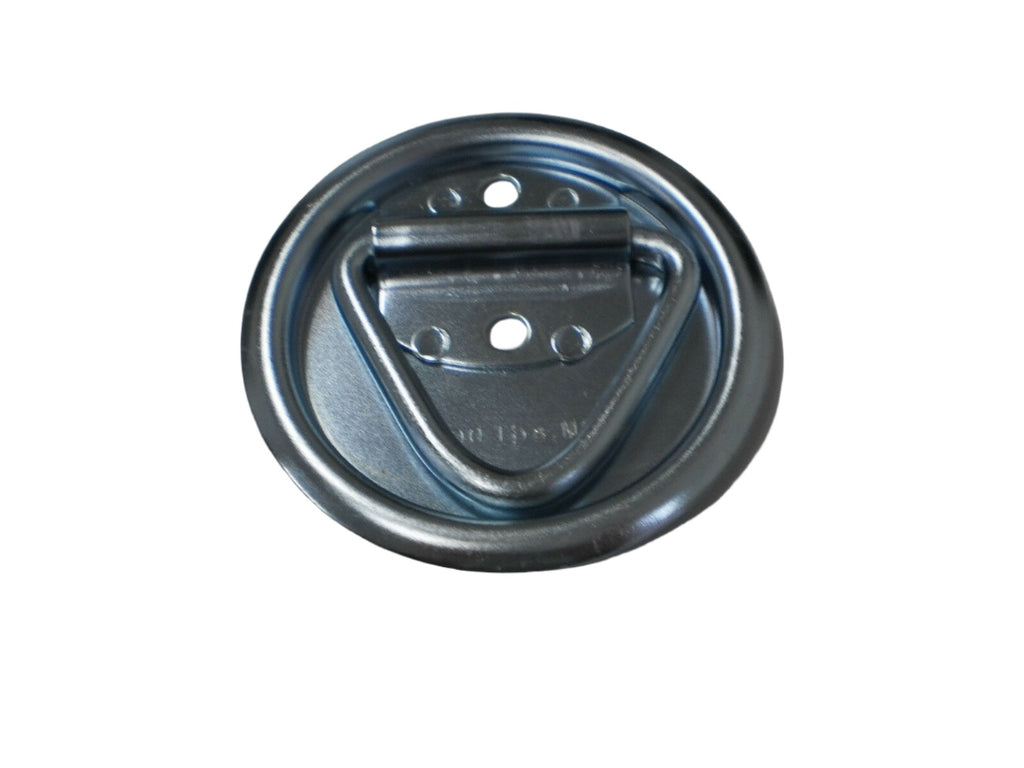

- If plastic trim ring is removed, can be recessed into a 3" hole that is 1/4" deep
- Mounting Holes are 1-1/8" center to center and are 1/4" wide (total of 3 holes, one in the center)
- Rated to 800#
|
Click on Any Picture for a Larger, Higher Quality Image |
||
|
|
|
|
