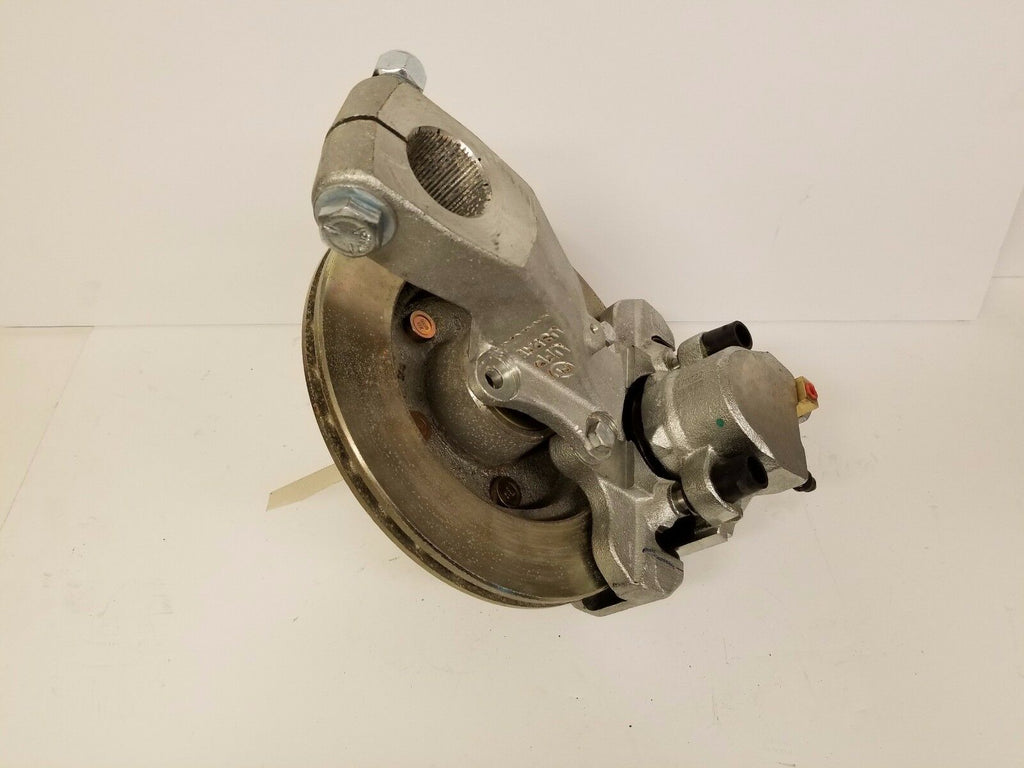

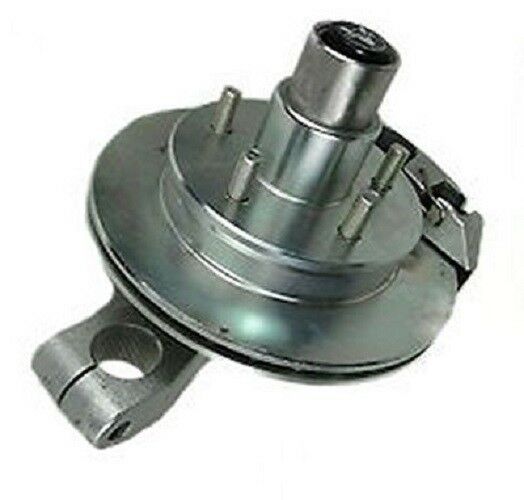

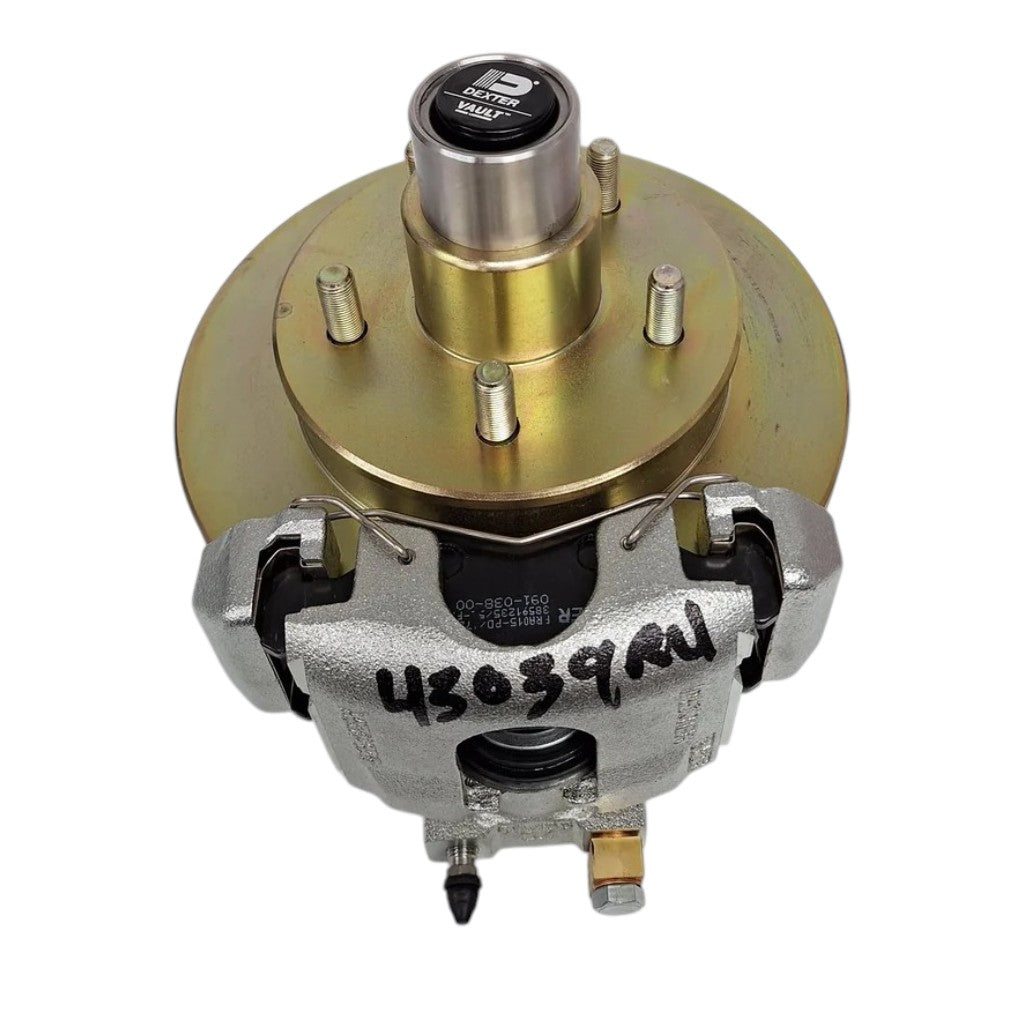

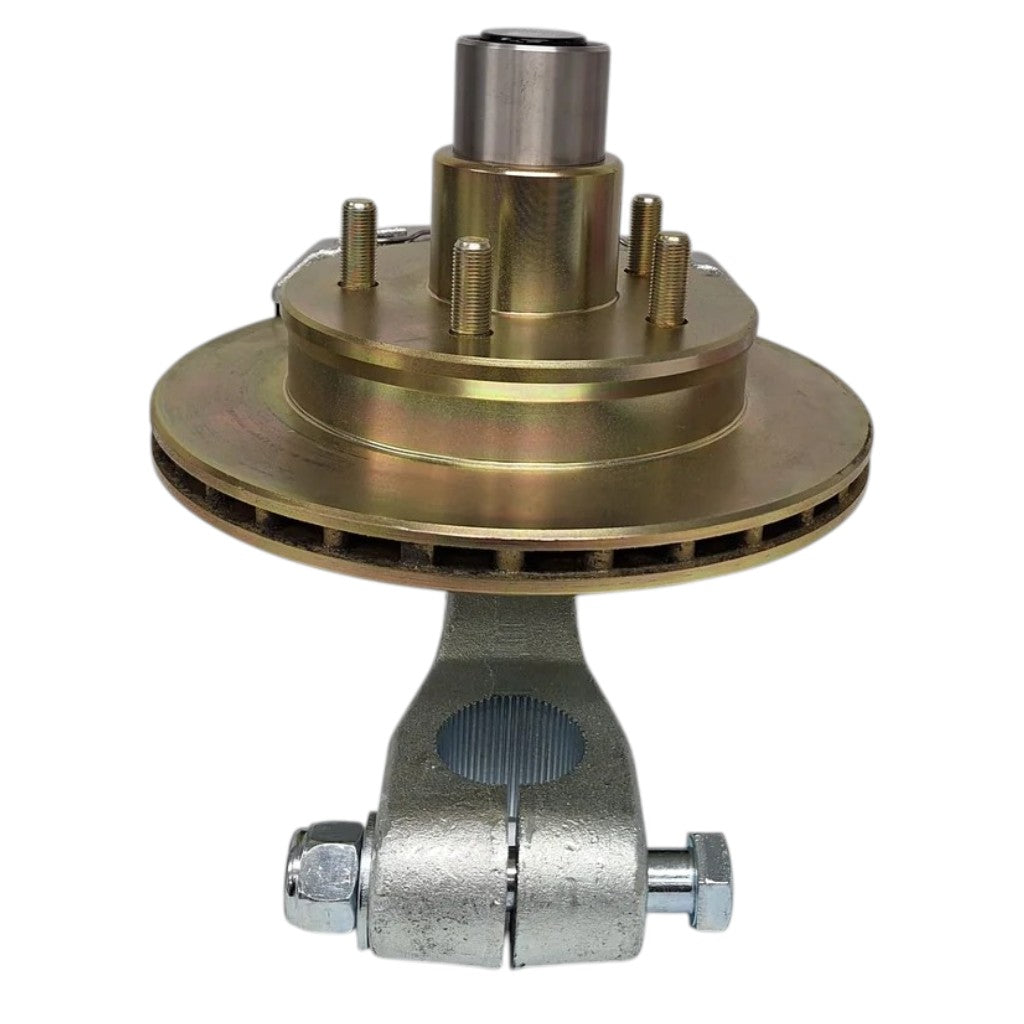

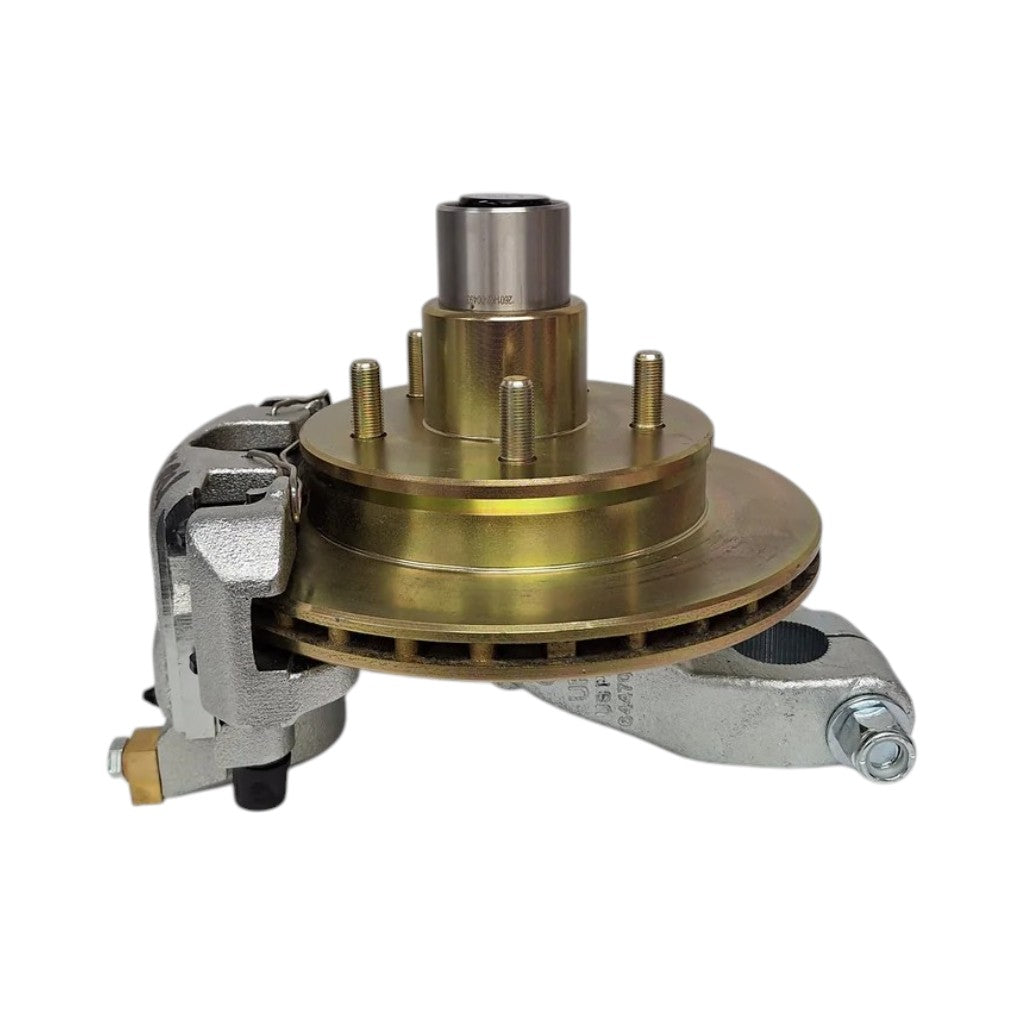

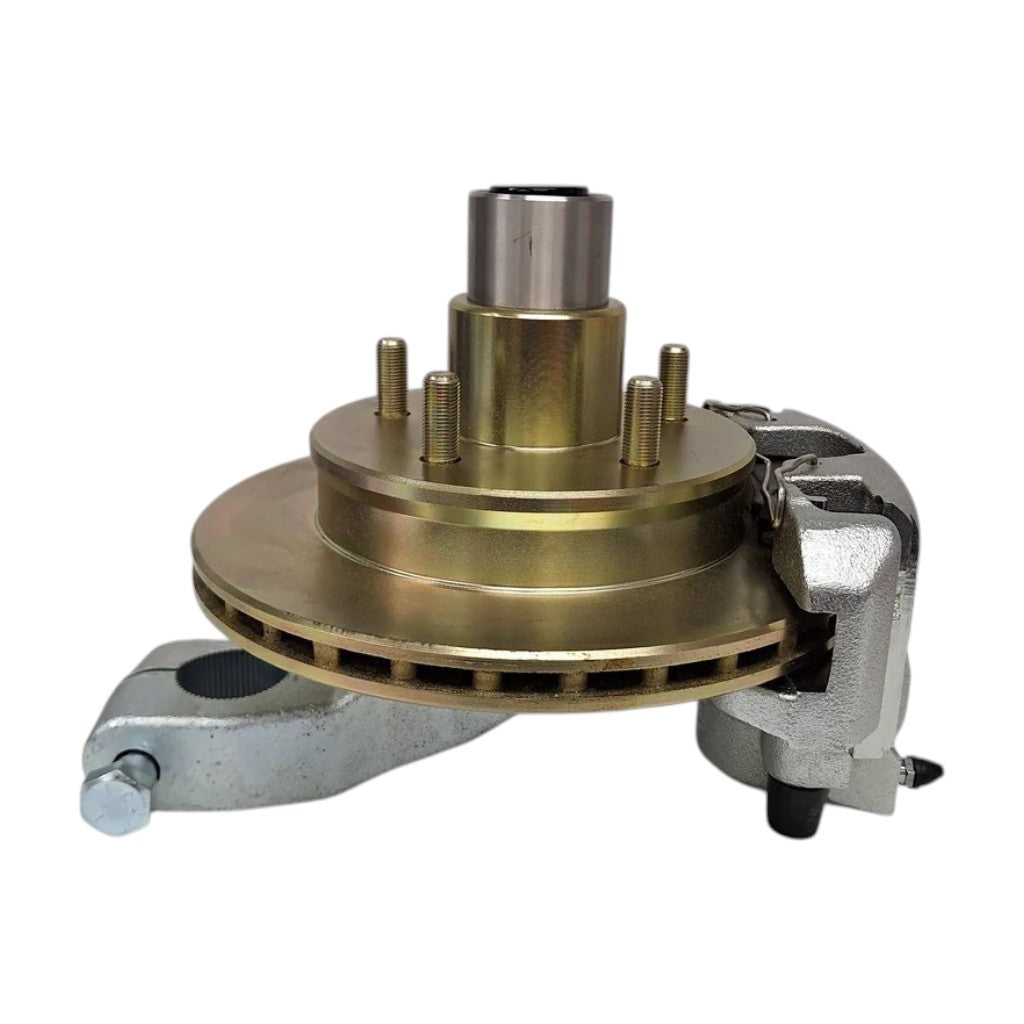

One UFP 3.7k Pound Rated Vault Torsion Arm with DB-35 Disc Brake Assembly RIGHT Side

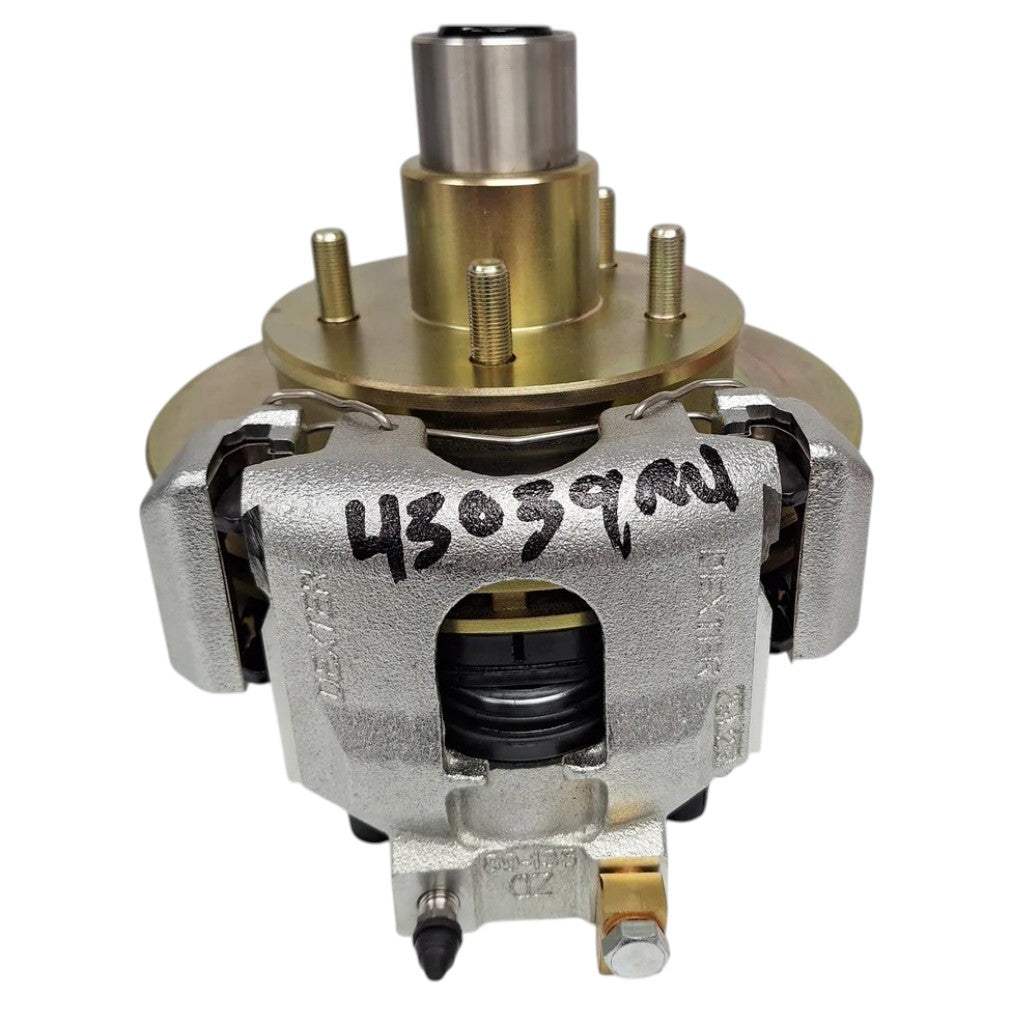

Part Number: 43039RU

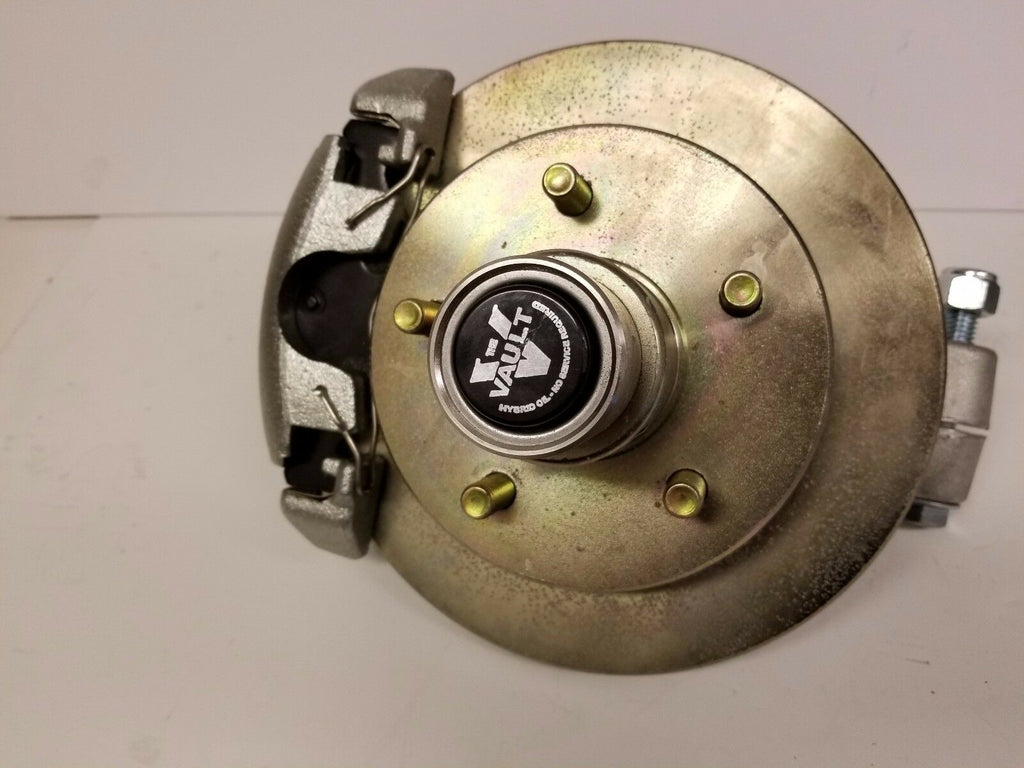

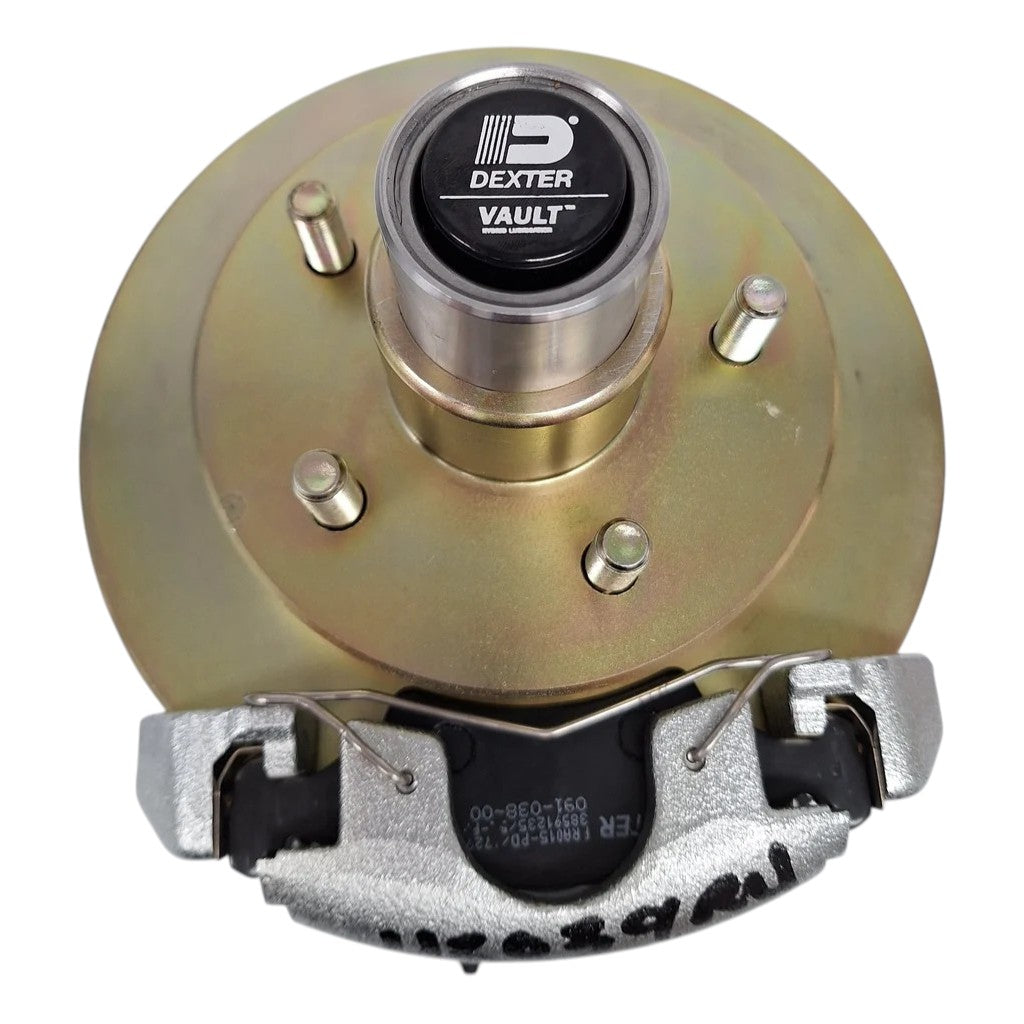

This UFP Torsion Axle Arm Assembly (Left Hand Side) has a 5 Lug DB-35 10" disc brake assembly with rotor and caliper installed.This assembly uses the The VAULT “Hybrid Lubrication system” which gives you the ultimate wheel bearing lubrication and protection.
No inspection, no maintenance and no service required.
The 5/8" torsion arm mounting bolt, nut, and washer are included.

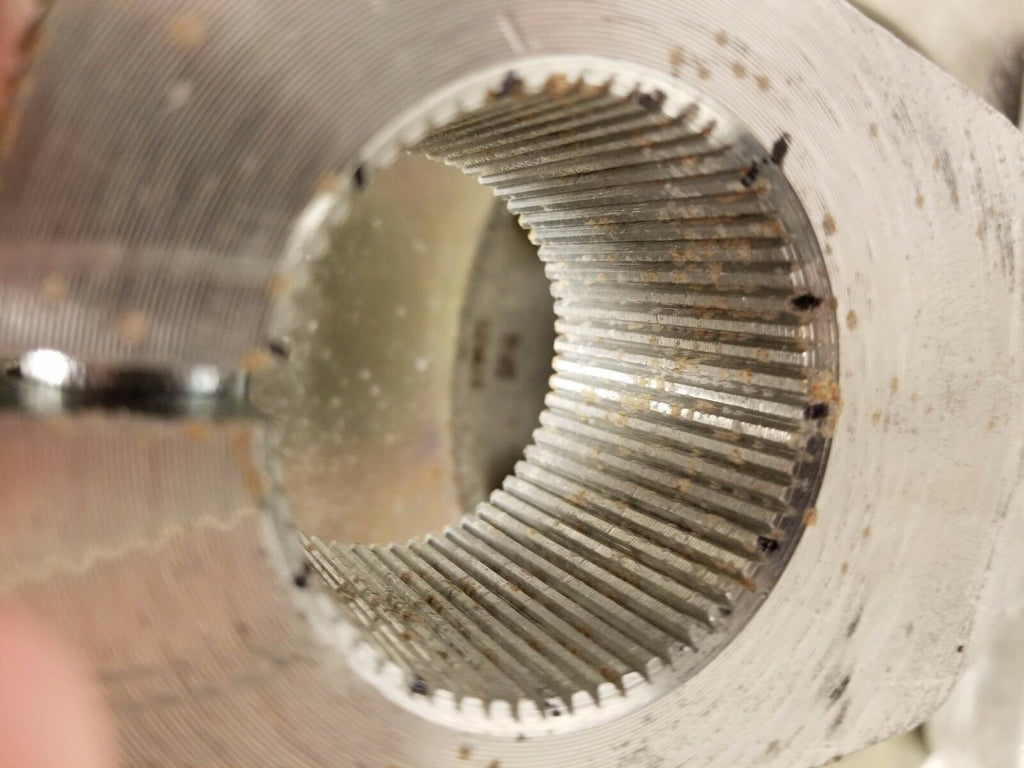

Spline Measurements: 59 Ridges (peaks)
Rated Capacity: 3700 Lbs.
Spindle Size: 1-3/8" x 1-1/16" tapered
Diameter: 9-3/4"
Bolt circle: 5 on 4-1/2"
Inner Bearing: 1-3/8" (L68149)
Inner Race: L68110 (Included)
Outer Bearing: 1-1/16" (L44649)
Outer Race: L44610 (Included)
Seal: 1.68" ID x 2.56" OD
Brand: UFP Trailer Parts
On the rotor/hub there will be a minimum Rotor small thickness of 17mm (MIN THK 17.0 MM) stamped on the inside of the back.
FREE SHIPPING
